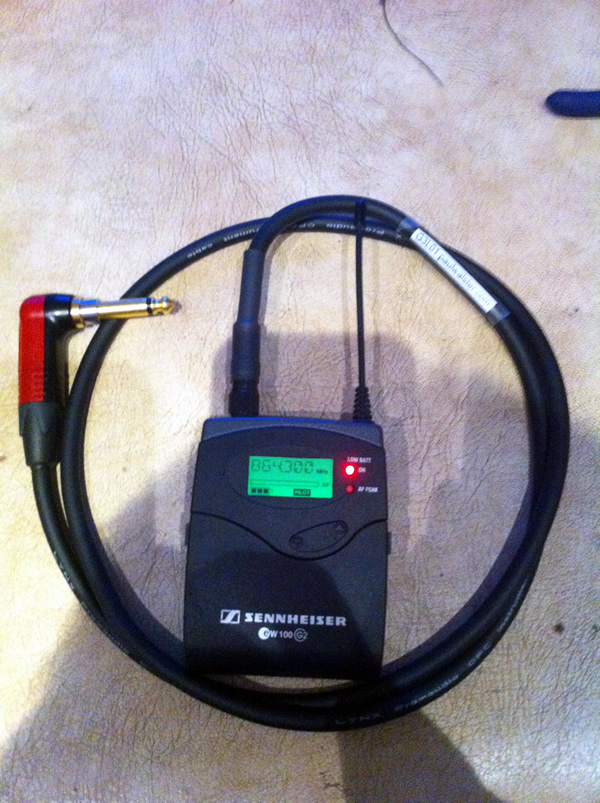

Sennheiser G1, 2, 3 wireless systems

DIY Line / Instrument Cable for Sennheiser wireless systems

Sennheiser G1, 2, 3 wireless systems

These cables cost from around £26 to buy in the UK.. This one cost a little over £14 to make myself.. And apart from the Sennheiser type locking jack, which are available from that popular online auction site (£3)! Most of the parts came from the rather excellent Audiospares. Not to be confused with the well respected but also 'well expensive' Studiospares!


Sennheiser mic connector

Sennheiser G2 belt pack transmitter pin out





DIY mic lead

Neutrik angled Silent Jack, Sennheiser (type) locking 3.5mm stereo Jack Plug, Lynx 6mm instrument cable and heat shrink tubing..





soldering jig

I use a DI box to secure the jack plug whilst soldering the connections..





Often overlooked with Neutrik connectors.. You must remove (snip off!) the spacer to accommodate thicker cable (6mm in this case)





sleeve

Like so..





finished

Neutrik angled Silent Jack..





coiled

All done!
